Standard Parameters
ECG:
Lead mode: 3/5-lead(R,L,F,N,C)
Lead selection :
l.ll,ll,avR,avL,avF,V
Waveform:
3 and 7channel selectable
Gain selection:0.5mm/mv,1mm/mv,2mm/mv
Sweep speed:
12.5mm/s;25mm/s;50mm/s
Heart rate range: Adult: 15~300bpm;Neonate:/pediatric:15~350bpm
Accuracy: +1bpm or +1%,whichecer is greaterResolution: 1bpmFilter:surgery mode:1~20Hz
monitor model:0.5~40Hz
Diagnostic mode:0.05~130Hz
1my.+3%
Scaling signal:
Protection: withstand 4000VAC/50 voltageisolation against electrosurgicainterference and defibrillation

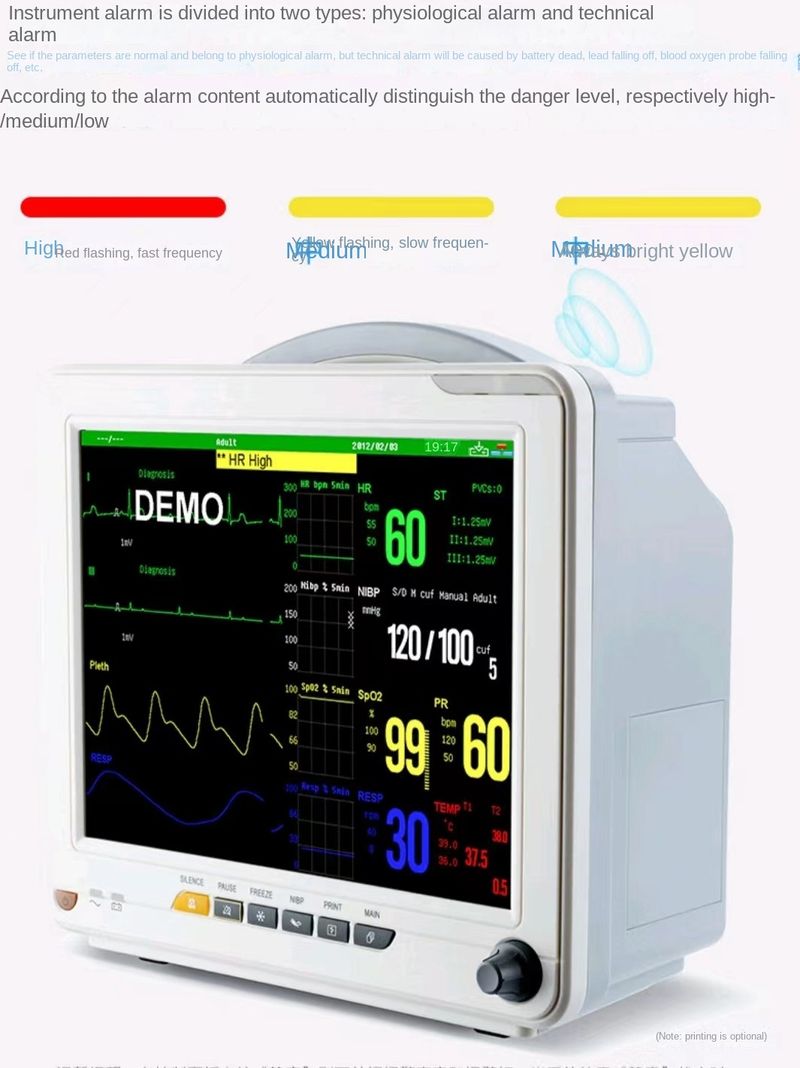

Alarm range:15~350bpm
S-T segment detecton:
Measurement range:2.0mV~+2.0mV
Alarm Range:Accuracy:
-2.0mV~+2.0mV-0.8mV ~+0.8My
+0.02My
Error:
Arrhythmia analysis: YES
SPO2:
Measurement range:0~100%Resolution:1%6
+2%(70-100%);0-69%Accuracy:
unspecified
Alarm range
0~100%
Pluse Rate:Resolution:1bpmError:+1bpm or +2%,whichever is greater
range:20~300bpm
NIBP:
Method:DigitalAutomatic oscilometricOperation mode:Manual/Automatic/continuousAuto measurement time: Adjustable(1~480min)Measurement Unit:mmHg/Kpa selectableMeasurement types: Systolic, Diastolic, MeanMeasurement tange:Range of Systolic pressure:Adult: 40~270mmHgPediatric: 40~220mmHgNeonate: 40~135mmHgRange of mean pressure:Adult:20~235mmHgPediatric: 20~165mmHgNeonate:20~110mmHg
Range of diastolic pressure:
Adult:10~215mmHgPediatric: 10~150mmHgNeonate :10~100mmHgOver-pressure protection: Double safety protectionResolution:1 mmHgSystolic.Diastolic,MeanAlarm:
RESPIRATIONMethod:
Thoracic impedanceAdult:7~120rpm京
Measurement range:
Neonate/Pediatric:7~150rpmYES,10~40S
Apnea alarm:Resolution:
1rpm
Accuracy:
+2rpm
TEMP
Compatible probe:
YSl or CYF
Measurement range:5~50C
Resolution :
0.1℃
+0.1℃
Accuracy:
Refreshing time:Average measuring time: <10s
about 1
Optional Parameters
RECORDER:
Build-in, thermal arrayRecorder:Plethysmogram caveform:2 channelsRecord mode: manual, on alarm,time-defined
Recording width: 50mm
Printing speed: 50mm/s
Recording type:
Frozen waveform record
NlBP recall record
Trend table record
Alarm record
Fixed -time record
lBP(invasive blood pressure)
IBP Waveform: 2-Channel
Max 8 channels
Measurement Range:-50~+350mmHg
Resolution:1mmHgUnit: mmHg, kPa
Accuracy:
Dynamc:+4mmHg or 4%,whichever is greaterSensitivity of transducer:5 uV/V/mmHg, +2%Impedance of transducer:300~3000 0hmTransducersites:Arteria Pressure(ART)Pulmonary Artery Pressure(PA)Left Atrium Pressure(LAP)
Right Atrium Pressure(RAP)
Central Venous Pressure(CVP)
Intracranial PRESSURE(ICP)
P1/P2
Selection of measurement range:
ART:0~+350mmHgPA:-10~+ 120mmHg
CVP/RAP/LAP/ICP:-10~+40mmHg
P1/P2:-50~+ 360mmHg
